NUT Nut YAMAKEN


ER // NUT

ER nut is in the norm DIN6499/ISO15488
It assembles with form A & form B ER collet in the norm of DIN6499/ISO15488
Nut is one of the main parts for collet chuck
It tightens the collet with tool on the collet chuck
However, it is never easy to produce an accurate one
There are some points to notice:

  1. Materia
    • It will easily crack if produce the nut with carburizing material
    • YAMAKEN produce ERM nut & ER nut with through hardening steel
    • YAMAKEN produce SGER nut with bearing steel
    • It will not crack easily with such material
  2. Roundness of nut
    • Nut with poor roundness will reduce the accuracy when assemble with the chuck
    • YAMAKEN produce the nut with roundness 0.002mm
  3. Concentricity
    • Nut with poor concentricity will reduce the accuracy when assemble with the chuck
    • YAMAKEN produce the nut with concendricity 0.002mm
  4. Tolerance of internal thread
    • Accuracy of nut at thread part in the norm DIN6499/ISO15488 is ISO6H
    • YAMAKEN produce it ISO5H
  5. Assembly accuracy of nut with chuck and collet
    • SGER nut + AA grade ER collet assembly runout 0.003mm @3*d
    • ERM nut & ER nut + AA grade ER collet assembly runout 0.005mm @3*d
    • SGER nut + ER collet assembly runout 0.006mm @3*d
    • ERM nut & ER nut + ER collet assembly runout 0.010mm @3*d
ER
NUT
ER11M
N11MX nano
N11MX
ER16M
N16MX nano
N16MX
ER20M
N20MX nano
N20MX
ER25M
N25MX nano
N25MX

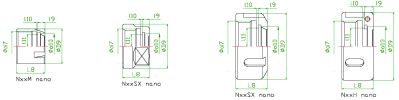

Ød7 ISO5H M13*P0.75 M19*P1.0 M24*P1.0 M30*P1.0
ØD9 16 22 28 35
Ød10 +0.1/0 12.3 17.7 21.7 27.0
L8 12 18 19 20
l9 3.6 4.6 5.6 5.8
l10 0/-0.2 1.0 1.1 1.2 1.3
l11 max. 5.0 7.2 9.2 11.5
ER
NUT
ER11
N11SX nano
N11SX
ER16
N16SX nano
N16SX
ER20
N20SX nano
N20SX
ER25
N25SX nano
N25SX
ER32
N32SX nano
N32SX
ER40
N40SX nano
N40SX
Ød7 ISO5H M14*P0.75 M22*P1.5 M25*P1.5 M32*P1.5 M40*P1.5 M50*P1.5
ØD9 19 28 34 42 50 63
Ød10 +0.1/0 12.3 17.7 21.7 27.0 34.0 42.0
L8 11.5 17.0 19 20.0 23.0 26.0
l9 3.1 4.6 5.6 5.8 6.3 7.5
l10 0/-0.2 1.0 1.1 1.2 1.3 1.6 2.1
l11 max. 5.0 7.2 9.2 11.5 14.9 18.5
W 0/-0.2 17 25 30
NUT ER16H ER20H ER25H ER32H ER40H
ØD9 32 36 43 51 63
ER nut clamping torque chart
ER NUT ER COLLET MAX. TORQUE     ERñ ER COLLET MAX. TORQUE
N11MX nano

ER11(1.0~2.5)
ER11(3.0~0.0)
10Nm
12Nm
          N11SX nano

ER11(1.0~2.5)
ER11(3.0~0.0)
12Nm
25Nm
N16MX nano

ER16(1.0~4.5)
ER16(5.0~10.0)
15Nm
17Nm
  N16SX nano

ER16(1.0~4.5)
ER16(5.0~10.0)
30Nm
55Nm
N20MX nano

ER20(1.0~6.5)
ER20(7.0~13.0)
21Nm
23Nm
  N20SX nano

ER20(1.0~6.5)
ER20(7.0~13.0)
45Nm
80Nm
N25MX nano

ER25(1.0~6.5
ER25(7.0~16.0)
24Nm
40Nm
  N25SX nano

ER25(1.0~6.5
ER25(7.0~16.0)
55Nm
100Nm
        N32SX nano

ER32(2.0~6.5)
ER32(7.0~20.0)
70Nm
135Nm
        N40SX nano

ER40(3.0~7.5)
ER40(8.0~26.0)
100Nm
170Nm





























































NxxMX(SX) nano & NxxMX(SX) are with the same torque



supERgrip SGER // NUT

SGER
NUT
SGER16
N16SGX nano
N16SGSX nano
SGER20
N20SGX nano
N20SGSX nano
SGER25
N25SGX nano
N25SGSX nano
SGER32
N32SGX nano
N32SGSX nano
SGER40
N40SGX nano
N40SGSX nano
Ød7 ISO5H M24*P1.0 M28*P1.0 M34*P1.0 M42*P1.0 M52*P1.0
ØD9 34 38 44 52 62
Ød10 +0.1/0 17.7 21.7 27.0 34.0 42.0
L8 20.6 22.5 24.0 26.0 29
l9 4.6 5.6 5.8 6.3 7.5
l10 0/-0.2 1.1 1.2 1.3 1.6 2.1
l11 max. 7.2 9.2 11.5 14.9 18.5
SGER nut clamping torque chart
SGER NUT ER COLLET MAX. TORQUE
N16MX nano

ER16(1.0~4.5)
ER16(5.0~10.0)
30Nm
55Nm
N20MX nano

ER20(1.0~6.5)
ER20(7.0~13.0)
45Nm
80Nm
N25MX nano

ER25(1.0~6.5)
ER25(7.0~16.0)
55Nm
100Nm
N32MX nano

ER32(2.0~6.5)
ER32(7.0~20.0)
70Nm
135Nm
N40MX nano

ER40(3.0~7.5)
ER40(8.0~26.0)
100Nm
170Nm



































NxxSGX nano & NxxSGSX nano are with the sametorque
